CCNA Security IPSec Site-to-Site Configuration Lab

Goal
To  recapitulate IPSec configuration by setting up Site-to-Site VPN with CLI and CCP with GNS3.
 - Configuration with CLI
 - Configuration with CCP (Wizard)

Topology
Suppose we have to interconnect 2 Branch LANs over insecure Internet:
 - LAN1: 10.10.10.0/24
 - LAN2: 172.16.1.0/24

LAN1 (R1 with 10.10.10.0/24) and LAN2 (R3 with 172.16.1.0/24)
Configuration with CLI

A) Configure R1
1) Setup IKE phase 1 (HAGLE)
crypto isakmp policy 1
 hash md5
 authentication pre-share
 group 2
 lifetime 10000
 encr 3des
!
crypto isakmp key mys3cr3t address 2.2.2.2
2) Setup IKE phase 2 (IPsec transform)
crypto ipsec transform-set SCLabs-SET esp-aes 256
3) Create ACL to match IPSec traffic will be encrypted
access-list 110 permit ip 10.10.10.0 0.0.0.255 172.16.0.0 0.0.255.255
4) Create Crypto-map with sequence "10" and linked to outgoing traffic direction (exit interface)
crypto map SCLabs-MAP 10 ipsec-isakmp
 description -=vpn to 2.2.2.2 =-
 set peer 2.2.2.2
 set transform-set SCLabs-SET
 match address 110
!
interface GigabitEthernet2/0
 ip address 1.1.1.1 255.255.255.0
 crypto map  SCLabs-MAP
!
!
interface GigabitEthernet1/0
 ip address 10.10.10.246 255.255.255.0
 negotiation auto
!

B) Configure R3
1) Setup IKE phase 1 (HAGLE)
crypto isakmp policy 1
 encr 3des
 hash md5
 authentication pre-share
 group 2
 lifetime 10000
!crypto isakmp key mys3cr3t address 1.1.1.1
2) Setup IKE phase 2 (IPsec transform)
crypto ipsec transform-set SCLabs-SET esp-aes 256
3) Create ACL to match IPSec traffic will be encrypted
access-list 110 permit ip 172.16.0.0 0.0.255.255 10.10.10.0 0.0.0.255
4) Create Crypto-map with sequence "10" and linked to outgoing traffic direction (exit interface)
crypto map SCLabs-MAP 10 ipsec-isakmp
 description -=vpn to 1.1.1.1 =-
 set peer 1.1.1.1
 set transform-set SCLabs-SET
 match address 110
!
interface GigabitEthernet1/0
 ip address 2.2.2.2 255.255.255.0
 crypto map SCLabs-MAP
!
interface GigabitEthernet2/0
 ip address 172.16.1.1 255.255.255.0
 negotiation auto
!
Verify
1) Check connectivity
R1#ping 2.2.2.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2.2.2.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 8/8/12 ms
2) After configuration is done, check IPSec tunnel
Session is down, because no packets matched to ACL 110. (ping from Step 1 has source IP 1.1.1.1 and not from LAN 10.10.10.0/24)
R1#show crypto session
Crypto session current status
Interface: GigabitEthernet2/0
Session status: DOWN
Peer: 2.2.2.2 port 500
  IPSEC FLOW: permit ip 10.10.10.0/255.255.255.0 10.10.10.0/255.255.255.0
        Active SAs: 0, origin: crypto map
R1#
3) Initial some packets from interested LAN (from 10.10.10.0/24 to 172.16.0.0/16)
R1#ping
Protocol [ip]:
Target IP address: 172.16.1.2
Repeat count [5]:
Datagram size [100]:
Timeout in seconds [2]:
Extended commands [n]: y
Source address or interface: 10.10.10.246
Type of service [0]:
Set DF bit in IP header? [no]:
Validate reply data? [no]:
Data pattern [0xABCD]:
Loose, Strict, Record, Timestamp, Verbose[none]:
Sweep range of sizes [n]:
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.1.2, timeout is 2 seconds:
Packet sent with a source address of 10.10.10.246
...!!
Success rate is 40 percent (2/5), round-trip min/avg/max = 12/22/32 ms
R1#

4) From LAN 10.10.10.0/24, check ping to remote LAN 172.16.1.2
Before IPSec tunnel is UP
 C:\Windows\system32>TRACERT.EXE 172.16.1.2
Tracing route to 172.16.1.2 over a maximum of 30 hops
  1     5 ms     2 ms     1 ms  10.10.10.246
  2     5 ms     5 ms     6 ms  1.1.1.2
  3    31 ms    10 ms     9 ms  2.2.2.2
  4    15 ms    14 ms    13 ms  172.16.1.2
Trace complete.
After IPSec is UP
C:\Windows\system32>TRACERT.EXE -d 172.16.1.2
Tracing route to 172.16.1.2 over a maximum of 30 hops
  1     1 ms     2 ms     1 ms  10.10.10.246
  2    14 ms    10 ms    10 ms  2.2.2.2
  3    15 ms    14 ms    14 ms  172.16.1.2
Trace complete.
5) Check IPSec session again
R1#show crypto session
Crypto session current status
Interface: GigabitEthernet2/0
Session status: UP-ACTIVE
Peer: 2.2.2.2 port 500
  IKE SA: local 1.1.1.1/500 remote 2.2.2.2/500 Active
  IPSEC FLOW: permit ip 10.10.10.0/255.255.255.0 172.16.0.0/255.255.0.0
        Active SAs: 2, origin: crypto map
R1#

R1#show crypto session detail
Crypto session current status
Code: C - IKE Configuration mode, D - Dead Peer Detection
K - Keepalives, N - NAT-traversal, T - cTCP encapsulation
X - IKE Extended Authentication, F - IKE Fragmentation

Interface: GigabitEthernet2/0
Uptime: 00:03:12
Session status: UP-ACTIVE
Peer: 2.2.2.2 port 500 fvrf: (none) ivrf: (none)
      Phase1_id: 2.2.2.2
      Desc: (none)
  IKE SA: local 1.1.1.1/500 remote 2.2.2.2/500 Active
          Capabilities:(none) connid:1003 lifetime:02:43:27
  IPSEC FLOW: permit ip 10.10.10.0/255.255.255.0 172.16.0.0/255.255.0.0
        Active SAs: 2, origin: crypto map
        Inbound:  #pkts dec'ed 615 drop 0 life (KB/Sec) 4413817/3407
        Outbound: #pkts enc'ed 628 drop 2 life (KB/Sec) 4413817/3407
R1#
6) Check MTU path
C:\tools>mturoute.exe 172.16.1.2
* ICMP Fragmentation is not permitted. *
* Speed optimization is enabled. *
* Maximum payload is 10000 bytes. *
- ICMP payload of 1472 bytes is too big.
....
.+ ICMP payload of 1422 bytes succeeded.
+ ICMP payload of 1425 bytes succeeded.
+ ICMP payload of 1426 bytes succeeded.
- ICMP payload of 1427 bytes is too big.
Path MTU: 1454 bytes.
C:\tools>mtupath.exe 172.16.1.2
MTU path scan to 172.16.1.2, ttl=64, limit=48
# 16 processing - best MSS 1426 (estimated MTU 1454) [pPPPPpPppPPpPPPp]

        #1 MSS IN RANGE     1 <==  1425 ==>  1426
        #2 MSS EXCEEDED  1427 <== 14957 ==> 16384
7) Check IPSec on R3
R3#show crypto sess
Crypto session current status
Interface: GigabitEthernet1/0
Session status: UP-ACTIVE
Peer: 1.1.1.1 port 500
  IKE SA: local 2.2.2.2/500 remote 1.1.1.1/500 Active
  IPSEC FLOW: permit ip 172.16.0.0/255.255.0.0 10.10.10.0/255.255.255.0
        Active SAs: 2, origin: crypto map
R3#

8) IKE session config
R1#show crypto isakmp policy
Global IKE policy
Protection suite of priority 1
        encryption algorithm:   Three key triple DES
        hash algorithm:         Message Digest 5
        authentication method:  Pre-Shared Key
        Diffie-Hellman group:   #2 (1024 bit)
        lifetime:               10000 seconds, no volume limit

Default protection suite
        encryption algorithm:   DES - Data Encryption Standard (56 bit keys).
        hash algorithm:         Secure Hash Standard
        authentication method:  Rivest-Shamir-Adleman Signature
        Diffie-Hellman group:   #1 (768 bit)
        lifetime:               86400 seconds, no volume limit
R1#
9)  The show crypto map verifies our IPsec status
R1#show crypto map
Crypto Map "SCLabs-MAP" 10 ipsec-isakmp
        Description: -=vpn to 2.2.2.2 =-
        Peer = 2.2.2.2
        Extended IP access list 110
            access-list 110 permit ip 10.10.10.0 0.0.0.255 172.16.0.0 0.0.255.255
        Current peer: 2.2.2.2
        Security association lifetime: 4608000 kilobytes/3600 seconds
        Responder-Only (Y/N): N
        PFS (Y/N): N
        Transform sets={
                SCLabs-Set:  { esp-256-aes  } ,
        }
        Interfaces using crypto map SCLabs-MAP:
                GigabitEthernet2/0
R1#
10) The show crypto ipsec transform-set verifies our IPsec status and shows that we're using tunnel mode (rather than transport mode).
R1#show crypto ipsec transform-set
Transform set SCLabs-SET: { esp-256-aes  }
   will negotiate = { Tunnel,  },

Transform set #$!default_transform_set_1: { esp-aes esp-sha-hmac  }
   will negotiate = { Transport,  },

Transform set #$!default_transform_set_0: { esp-3des esp-sha-hmac  }
   will negotiate = { Transport,  },

R1#

11) Show info about IPSec security associations (SAs)
R1#show crypto ipsec sa

interface: GigabitEthernet2/0
    Crypto map tag: SCLabs-MAP, local addr 1.1.1.1

   protected vrf: (none)
   local  ident (addr/mask/prot/port): (10.10.10.0/255.255.255.0/0/0)
   remote ident (addr/mask/prot/port): (172.16.0.0/255.255.0.0/0/0)
   current_peer 2.2.2.2 port 500
     PERMIT, flags={origin_is_acl,}
    #pkts encaps: 623, #pkts encrypt: 623, #pkts digest: 623
    #pkts decaps: 612, #pkts decrypt: 612, #pkts verify: 612

    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
    #send errors 1, #recv errors 0

     local crypto endpt.: 1.1.1.1, remote crypto endpt.: 2.2.2.2
     path mtu 1500, ip mtu 1500, ip mtu idb GigabitEthernet2/0
     current outbound spi: 0x539CC616(1402783254)
     PFS (Y/N): N, DH group: none

     inbound esp sas:
      spi: 0xC5FDA537(3321734455)
        transform: esp-256-aes ,
        in use settings ={Tunnel, }
        conn id: 7, flow_id: SW:7, sibling_flags 80000046, crypto map: SCLabs-MAP
        sa timing: remaining key lifetime (k/sec): (4391197/1001)
        IV size: 16 bytes
        replay detection support: N
        Status: ACTIVE

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:
      spi: 0x539CC616(1402783254)
        transform: esp-256-aes ,
        in use settings ={Tunnel, }
        conn id: 8, flow_id: SW:8, sibling_flags 80000046, crypto map: SCLabs-MAP
        sa timing: remaining key lifetime (k/sec): (4391197/1001)
        IV size: 16 bytes
        replay detection support: N
        Status: ACTIVE

     outbound ah sas:

     outbound pcp sas:
R1#

R3#show crypto ipsec sa | inc pkts
    #pkts encaps: 612, #pkts encrypt: 612, #pkts digest: 612
    #pkts decaps: 623, #pkts decrypt: 623, #pkts verify: 623
    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
R3#
Configuration with CCP

Step 1, Site-to-Site VPN Wizard

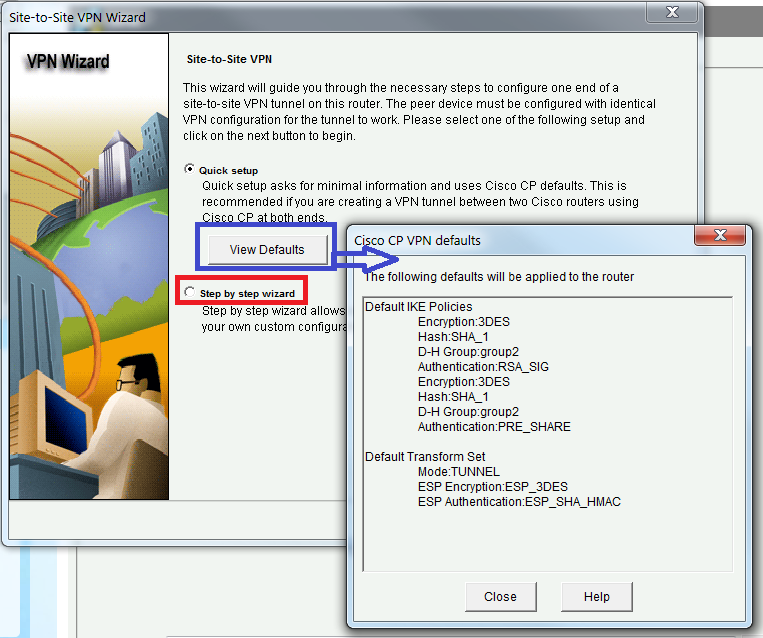

Step 2, Select Step by step wizard

Step 3, Configure Peer and Peer authentication

Step 4, Configure IKE Phase 1

Step 5, Set Up IPSec settings (transform-set)

Step 6, Configure Interesting Traffic (which will be encrypted)

Step 7, Final settings review, Press FINISH to complete wizard

If all parameteres are OK, send config with Delivery option.
